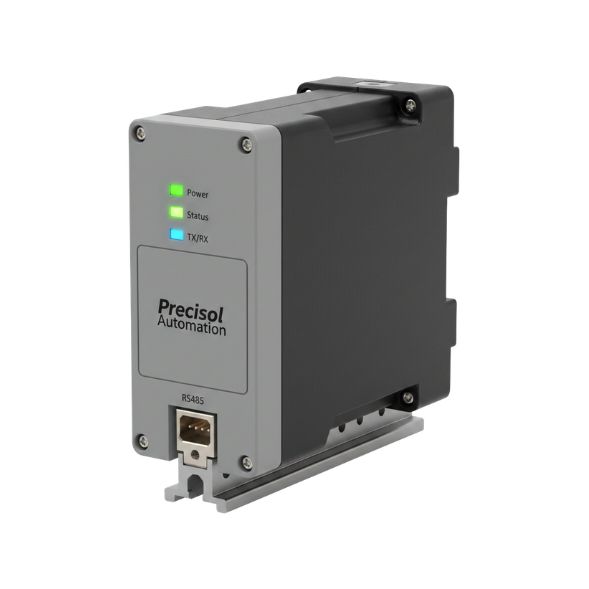

Serial RS485 IO Controller

Serail RS485 IO Controller

Serial RS485 IO Controller


Our Serial RS485 IO Controller is engineered to deliver seamless industrial automation and efficient remote monitoring across diverse applications. Built with Modbus RTU protocol support, this controller ensures reliable, high-speed, and accurate data acquisition from multiple devices connected over a serial RS485 network. The compact and versatile design allows easy integration into factories, process industries, and automated systems, enabling the control of both digital and analog inputs/outputs. Its flexibility makes it suitable for managing a wide range of devices, from sensors and actuators to complex industrial machinery.

With this controller, you can effortlessly monitor critical parameters, execute automated control tasks, and integrate with SCADA, PLC, or IoT platforms for centralized data management. Its ability to operate continuously ensures uninterrupted operation and precise control of your industrial processes.

Whether your goal is to streamline production, improve operational efficiency, or implement predictive maintenance, our Serial RS485 IO Controller provides a scalable, cost-effective, and reliable solution to meet all your industrial I/O requirements.

Get a Quote

Highlights

Reliable RS485

Ensure stable and accurate data transfer across multiple devices with RS485 serial network connectivity. Ideal for long-distance industrial I/O applications.

Fast & Accurate I/O Response

Experience high-speed digital and analog input/output control with minimal latency, perfect for real-time monitoring and automation tasks.

Easy Integration & Scalability

Seamlessly integrated with SCADA, PLC, HMI, or IoT platforms. Scalable for small setups or large industrial networks for versatile automation solutions.

Key Features

  • Multiple digital and analog I/O channels
  • Supports remote monitoring and control
  • Configurable I/O mapping and addressing
First Image
  • Wide voltage input range and robust surge protection
  • LED indicators for status and diagnostics
  • Scalable for small to large industrial networks​
Last Image

Input/output Interface

Analog Input Channels: max 8

Analog Output Channels: max 4

Digital Input Channels: max 8

Digital Output Channels: max 8

Isolation: 3k VDC or 2k Vrms

Relay Channels: max 6

Digital Inputs

Connector: Screw-fastened Euroblock terminal

Counter Frequency: 2.5 kHz

Digital Filtering Time Interval: Software configurable

Dry Contact: On: short to GND, Off: open

I/O Mode: DI or event counter

Sensor Type: Dry contact, Wet contact (NPN or PNP)

Digital Outputs

Connector: Screw-fastened Euroblock terminal

Current Rating: 200 mA per channel

I/O Mode: DO or pulse output

I/O Type: Source or Sink

Pulse Output Frequency: 5 kHz

Relays

Breakdown Voltage: 500 VAC

Connector: Screw-fastened Euroblock terminal

Contact Current Rating: Resistive load: 5 A @ 30 VDC, 250 VAC

Contact Resistance: 100 milli-ohms (max.)

Electrical Endurance: 100,000 operations @ 5 A resistive load

Initial Insulation Resistance: 1,000 mega-ohms (min.) @ 500 VDC

Mechanical Endurance: 5,000,000 operations

Pulse Output Frequency: 0.3 Hz at rated load

Type: Form A (N.O.) power relay

Analog Inputs

Accuracy: ±0.1% FSR @ 25°C, ±0.3% FSR @ -10 to 60°C

Built-in Resistor for Current Input: 120 ohms

Connector: Screw-fastened Euroblock terminal

I/O Mode: Voltage/Current

I/O Type: Differential

Input Impedance: 10 mega-ohms (min.)

Input Range: 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA, 4 to 20 mA (with burn-out detection)

Converter Resolution: 16 bits

Analog Outputs

Accuracy: ±0.5% FSR @ 25°C, ±0.7% FSR @ -10 to 60°C

Connector: Screw-fastened Euroblock terminal

Output Range: 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA

Converter Resolution: 12-bit

Serial Interface

Baudrate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 112800, 921600 bps

Connector: Terminal block

No. of Ports: 2

Parity: None, Even, Odd

Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms

Serial Standards: RS485

Stop Bits: 1, 2

Surge: 1 kV

ESD: 15 kV

Data Bits: 8

Serial Signals

RS-485-2w: Data+, Data-, GND

Industrial Protocols: Modbus RTU Slave

Power Parameters

Power Connector: Screw-fastened Euroblock terminal

No. of Power Inputs: 1

Input Voltage: 12 to 48 VDC

Power Consumption: 154 mA @ 24 VDC

Applications

Conveyor Belt Control in Packaging Line

In a packaging factory, the Serial RS485 IO Controller is used to control and monitor conveyor belt motors efficiently. By connecting motor starters, speed sensors, proximity sensors, and limit switches to its digital and analog I/O channels, the controller enables accurate start/stop control, speed adjustment, and fault detection of conveyor belts.

Using the RS485 network with Modbus RTU protocol, multiple conveyor belts can be connected and synchronized through a central PLC, HMI, or SCADA system. This ensures smooth material flow between different sections of the packaging line, quick detection of jams or overload conditions, and faster corrective action. Overall, the system helps in improving production efficiency, reducing downtime, and preventing product blockage in packaging operations.

Conveyor Belt Control

FAQs

A Serial RS485 IO Controller is used to monitor and control digital and analog I/O devices over an RS485 serial network using Modbus RTU.
