LIN Gateway

lin gateway

LIN Gateway


Connect your LIN bus-based automotive devices and equipment to a cloud server without any changes to your device. Just connect, configure, and you're ready to go!

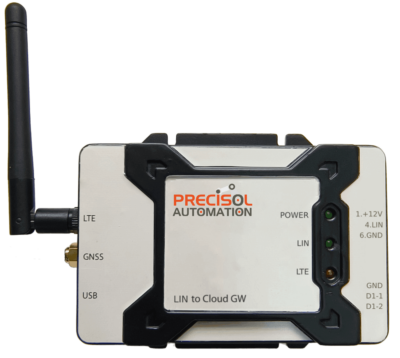

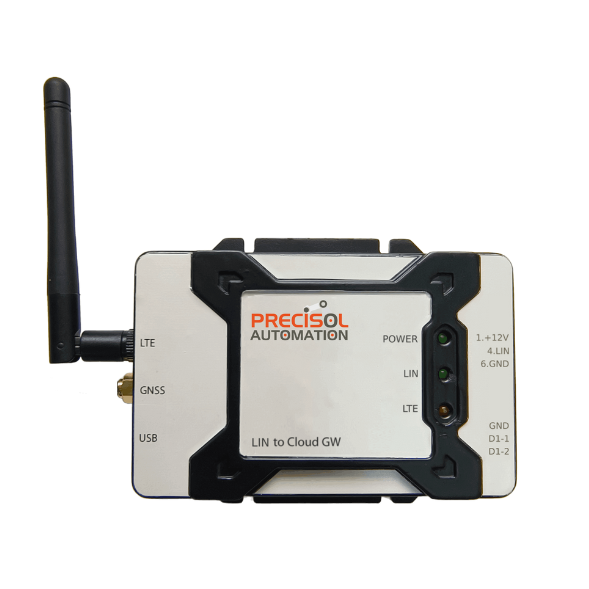

The LIN gateway is a compact, plug-and-play device that allows any LIN bus to connect to the cloud via cellular connectivity. It can be configured using the custom tool, PreciCon. This gateway features built-in surge protection diodes to safeguard the LIN bus and can operate both as a master and a slave. Perfect for integrating into a vehicle telematics system for remote vehicle diagnostics, providing a seamless and secure connection to the cloud.

Get a Quote

Highlights

PreciCloud - Cloud Dashboard

A customized cloud dashboard for viewing the acquired data from anywhere at any time. It also supports remote device configuration, OTA device firmware update, and email/SMS notifications. User can download the reports in CSV, XLS, PDF..

PreciCon - Configurator Tool

Configure the LIN, cloud and data acquisition/upload interval settings using our customized configurator tool "PreciCon".it is possible to configure gateway’s serial settings, Modbus registers, event conditions & cloud settings.

Quality & Efficiency

Durable, robust ABS plastic enclosure can withstand the toughest automotive or industrial conditions. Rigidly screw your adapter with available flange arrangement and connect the device to LIN bus via simple four wire connection.

Typical Application


With its compact design and cellular connectivity, the gateway is ideally suitable for telematics and predictive maintenance of LIN bus enabled automotive devices!

Key Features

  • Single channel LIN 2.0 bus interface
  • Master or slave mode settings
  • Bit rates from 1 kbit/s up to 20 kbit/s
  • IP40 rated enclosure
  • Zero Data loss
First Image
  • uSD card Storage (8GB to 32GB)
  • USB 2.0 Interface
  • Free Configuration software PreciCon
  • Standard DB-9 connector
  • PreciCloud application for viewing live data
Last Image

General

Power Supply: 12V DC

Power consumption: 1.5A

Max @12V

PC interface: USB Mini B connector. USB device communication for configuration using PreciCon tool

Indication: Status LEDs for Power, Serial communication, cloud network communication

LIN Interface

Single-channel LIN 2.0 interface

Galvanic isolation up to 500 V

ESD protection on LIN bus up to 23KV compliance to IEC 61000-4-2, Level 4

External 12V power supply required for LIN transceiver

LIN bus connection via a 9-pin D-Sub connector

Environmental

Dimension: 105mm X 68mm X 31.5mm (W/O flanges)

Weight: 138 gm

Mechanicals: ABS plastic (IP40)

Operating Temperature: -40 to +85 Degree Celsius

Data Storage

Storage Type: Non-Removable microSD card

Capacity: 8 to 32GByte

Digital Inputs

Number of channels: 2

Input Switching Threshold: High – 12V, Low – 0V

Cellular Connectivity

LTE Category: LTE CAT 1, Support for global coverage including Europe, US, Asia-Pacific, etc (optional, to be mentioned during ordering)

Bands: LTE-FDD: B1/3/5/8, LTE-TDD: B34/38/39/40/41, GSM: B3/8

Antenna: SMA connector for external finger type or expandable antenna

SIM interface: Nano SIM card

Cloud Data Transfer

Log data in industry standard format

Cyclic Logging support – Oldest file will be deleted when storage is full

100% power safe data logging – no file corruption when disconnected

Inbuilt RTC with year, month, date, weekday, hours, minutes and seconds data

RTC can be configured to match local time zone

RTC can be auto-synced via LTE network

Each device has a globally unique ID ensuring unique log file naming

Configuration or firmware Over-The-Air support with digital signature

Periodic heartbeat to cloud for connection supervision

Option for enabling or disabling upload of logged files to cloud

Applications

LIN gateway for remote vehicle diagnostics

Our LIN gateway serves as a wireless gateway providing cellular connectivity to any LIN 2.0 based system. User can configure the bit rate and cloud upload interval via USB or Over-The-Air using the custom tool names PreciCon. Connecting to the LIN bus will be very simple 4-wire connection. Once connected, the LIN gateway can acquire and periodically upload the LIN data to cloud.

In addition, the device also records the data in inbuilt memory in .csv or .MF4 format when cellular connectivity is lost. This feature enables reliable and secure cloud communication which is ideal for remote vehicle diagnostics. PreciCloud dashboard can be used for remote monitoring in subscription model or the device can upload the data to any third-party server owned by the user.

Remote vehicle diagnostics

FAQs

A LIN gateway acts as a bridge, allowing different systems or networks to communicate with a Local Interconnect Network (LIN) bus, typically by converting LIN data to another protocol like CAN or to a wireless standard for cloud connectivity.
