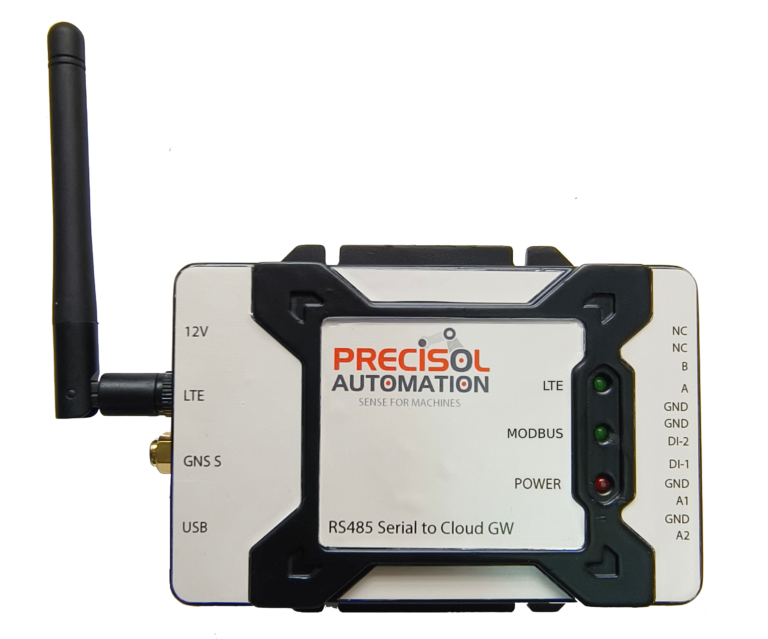

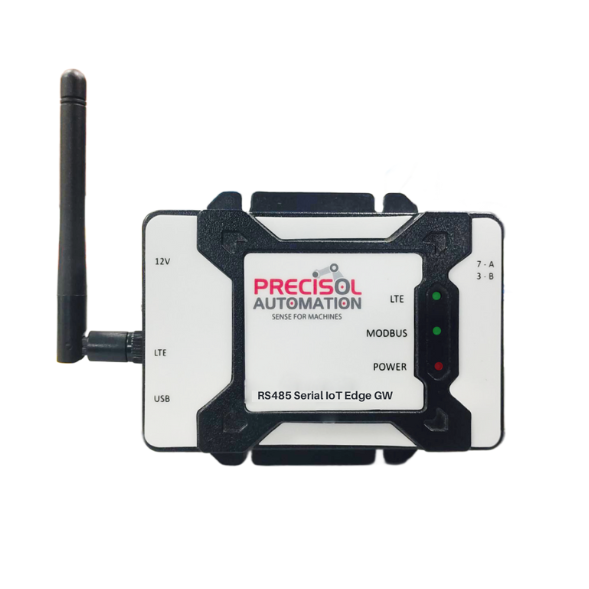

RS485 Serial IoT Edge Gateway
Our range of IoT Edge Gateways are an IP40 rated, industrial grade devices, supports different serial interfaces like RS232, RS422 and RS485 which makes it suitable for connecting your industrial devices to a cloud server. Thanks to its futuristic edge intelligence capability which enables user to set thresholds or conditions for reporting the events.
Utilizing the public cellular network (4G/2G), this small and robust wireless device allows industrial users to send data over great distances. This edge gateway can function as a Modbus gateway where any Modbus enabled serial device can be easily interfaced with little setups, enabling remote supervision from a central server.
Due to its support for multiple serial protocols, such as ASCII, Modbus RTU, and proprietary protocols, it is ideal for applications such as flow meter reading, remote controlling of PLCs, HMIs, etc. The device also offers a user-friendly interface for quick configuration and monitoring of data.
Category: Serial to Cloud Gateways
Highlights
PreciCloud - Cloud Dashboard
Our cloud platform provides a convenient way to view data from anywhere, integrating predefined widgets for applications like energy meter and flow meter reading. It supports remote device configuration, over-the-air firmware upgrades, and email/SMS notifications based on edge intelligence. User can download the reports in industry standard format.
PreciCon - Quick Configuration
By using our specially designed configurator tool, "PreciCon," it is possible to choose and monitor standard industrial devices from renowned manufacturers. Gateway’s serial settings, Modbus registers are preset and ready to configure via USB. It also supports upgrading firmware and configuration of the device remotely over the air.
Easy Installation
Installation and Commissioning of the device is made easy with very few simple steps. Choose your end device from the list and single click to configure the device. Plug your serial device with standard DB9 connector and rigidly screw the gateway with available flange arrangements. You are ready to monitor !!!
Secure internal storage:
Acquired CAN data are available in inbuilt micro-SD card storage which stores the data more securely with encryption. The stored data can be decrypted and viewed using the PreciCon tool.
Quick configuration:
Connect the CAN-FD to USB adapter to your computer to configure the device to work with your vehicle using the free configuration tool PreciCon.
Simple Mounting and Ready to go:
Durable, robust ABS plastic enclosure can withstand the toughest conditions. Rigidly screw your adapter with available flange arrangement and get ready to log /view live data.
Key Features
- x1 RS485 serial interface
- Configurable upload interval
- IP40 Rated enclosure
- USB 2.0
- Real time clock
- Protocol support - Modbus RTU/ASCII
- Optional internal storage
- LTE connectivity
- x2 digital inputs
- x2 analog inputs
- Optional GNSS
- M2M Simcard
Technical Specifications
Deliverables
Downloads
Technical Specifications
General
Power Supply: 5V to 24V DC
Power consumption: 2A Max @12V
PC interface: USB Mini B connector. USB device communication for configuration using PreciCon tool
Indication: Status LEDs for Power, Serial communication, cloud network communication
RS485 Serial Interface
Connection: External interface via pluggable terminal connector
Data bits: 5,6,7,8 bits
Baud Rate: 110, 300, 600, 1200, 2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 230400, 460800, 921600 bps
Stop bits: 1, 2 bits
Parity: None, Odd, Even, mark, space
Environmental
Dimension: 105mm X 68mm X 31.5mm (W/O flanges)
Weight: 138 gm
Mechanicals: ABS plastic (IP40)
Operating Temperature: -40 to +85 Degree Celsius
Data Storage
Storage Type: Non-Removable microSD card
Capacity: 8 to 32GByte
Analog Inputs
Number of channels: 2
Range: 4mA to 20mA current input
Resolution: 16-bit
Digital Inputs
Number of channels: 2
Input Switching Threshold: High – Greater than 3V or 1.5V (optional, to be mentioned during ordering), Low – Less than 3V or 1.5V (optional, to be mentioned during ordering)
Voltage input limit: 30V Max
Cellular Connectivity
LTE Category: LTE CAT 1, Support for global coverage including Europe, US, Asia-Pacific, etc (optional, to be mentioned during ordering)
Bands: LTE-FDD: B1/3/5/8, LTE-TDD: B34/38/39/40/41, GSM: B3/8
Antenna: SMA connector for external finger type or expandable antenna
SIM interface: Inbuilt non-removable micro SIM card
Cloud Data Transfer
Log data in industry standard format.
Cyclic Logging support – Oldest file will be deleted when storage is full
100% power safe data logging – no file corruption when disconnected.
Inbuilt RTC with year, month, date, weekday, hours, minutes and seconds data
RTC can be configured to match local time zone.
RTC can be auto-synced via LTE network.
Each device has a globally unique ID ensuring unique log file naming.
Logged files can be encrypted for security/GDPR/CCPA (incl. integrity check)
Stable and secure transfer like HTTP/HTTPS, etc. Data and OTA updates can be sent via secure transfer like TLS 1.2
Encrypted server credentials in device storage
Configuration or firmware Over-The-Air support with digital signature
Periodic heartbeat to cloud for connection supervision
Option for enabling or disabling upload of logged files to cloud
Deliverables
One Unit with IP40 rated ABS plastic enclosure
- PreciCon – Windows / Linux OS based application for configuration
- PreciCloud – Cloud application with individual login per user
- One LTE Antenna
- One pluggable terminal connector for RS485 interface
- User Manual
Downloads
Applications

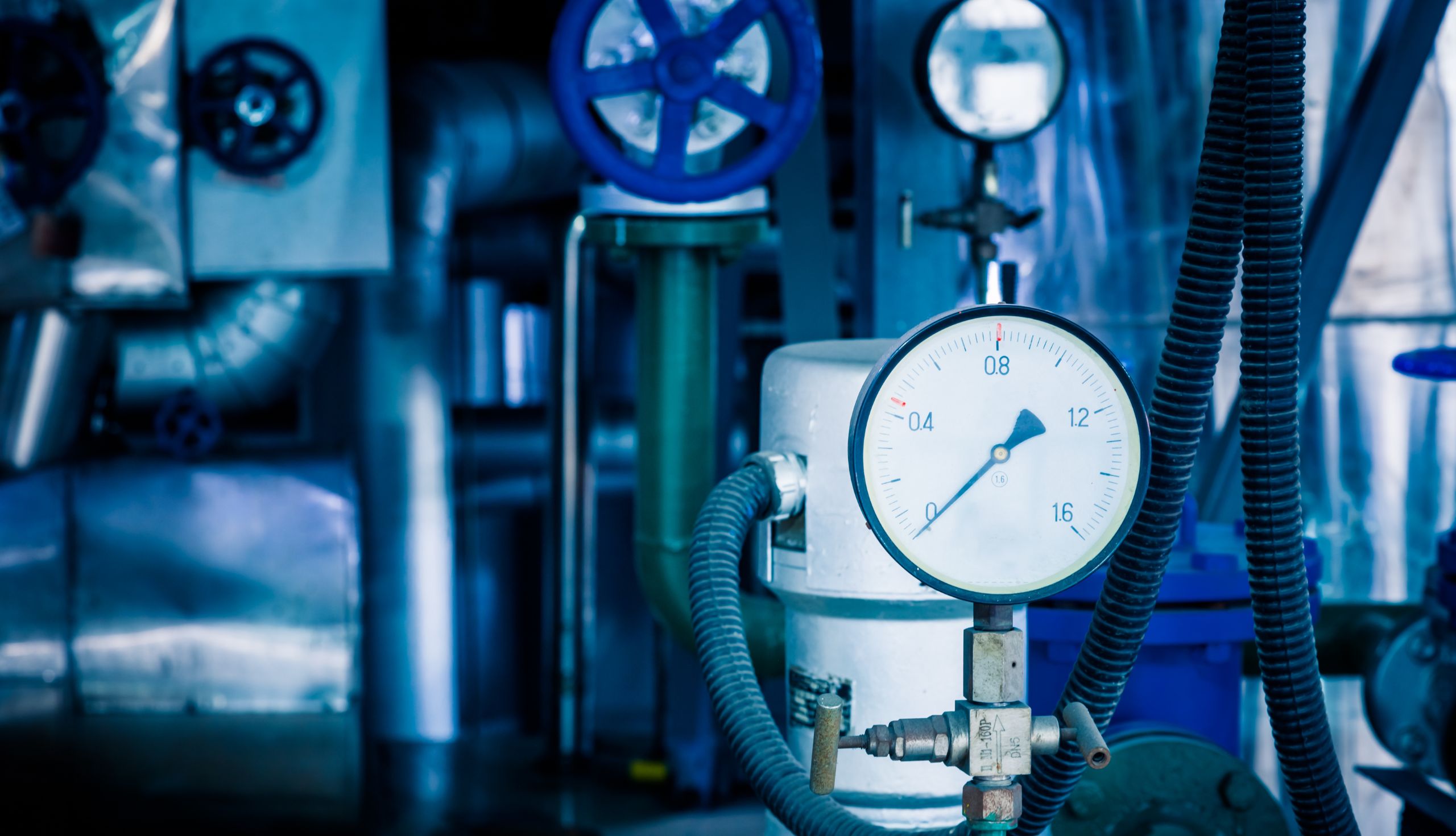

IoT Edge Gateway for Flow meter reading
Our RS485 serial IoT edge Gateway are fine tunned to supported most of the standard flow meters available in market. Most of the flowmeters supports serial interfaces with different protocols such as Modbus RTU/ASCII or proprietary protocols through which live data can be monitored using a cloud server. The instantaneous and totalized flow values can be acquired and displayed in PreciCloud dashboard enabling operators to monitor water usage, detect irregularities, and trigger alarms based on edge intelligence feature.

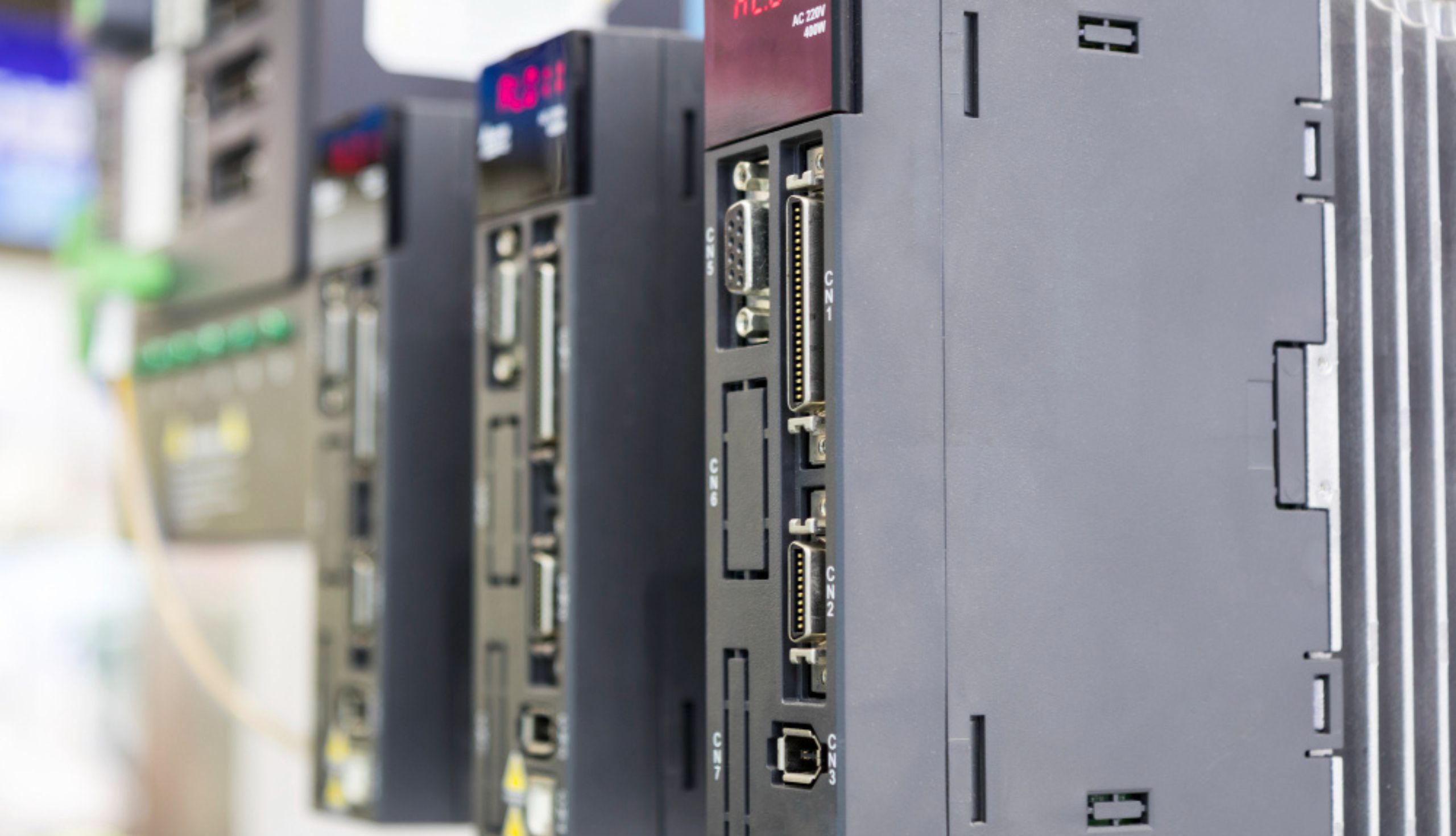

Modbus Gateway for PLC
PLC’s are commonly used in industrial automation applications where low cost versions generally supports serial interface like RS485, RS232 or RS422. Among them, RS485 half-duplex serial communication will be commonly available with support for Modbus. Our RS485 serial IoT edge gateway can be used as a Modbus gateway for such PLCs where connections and commissioning are made easy with very few steps.
With our PreciCon configurator tool, user can simply select the desired PLCs from the list of renowned manufacturers. All the Modbus register settings are pre-configured where by just choosing the required data and upload interval will be more than sufficient for device configuration. Just write the configuration.
