7-Inch Human Machine Interface

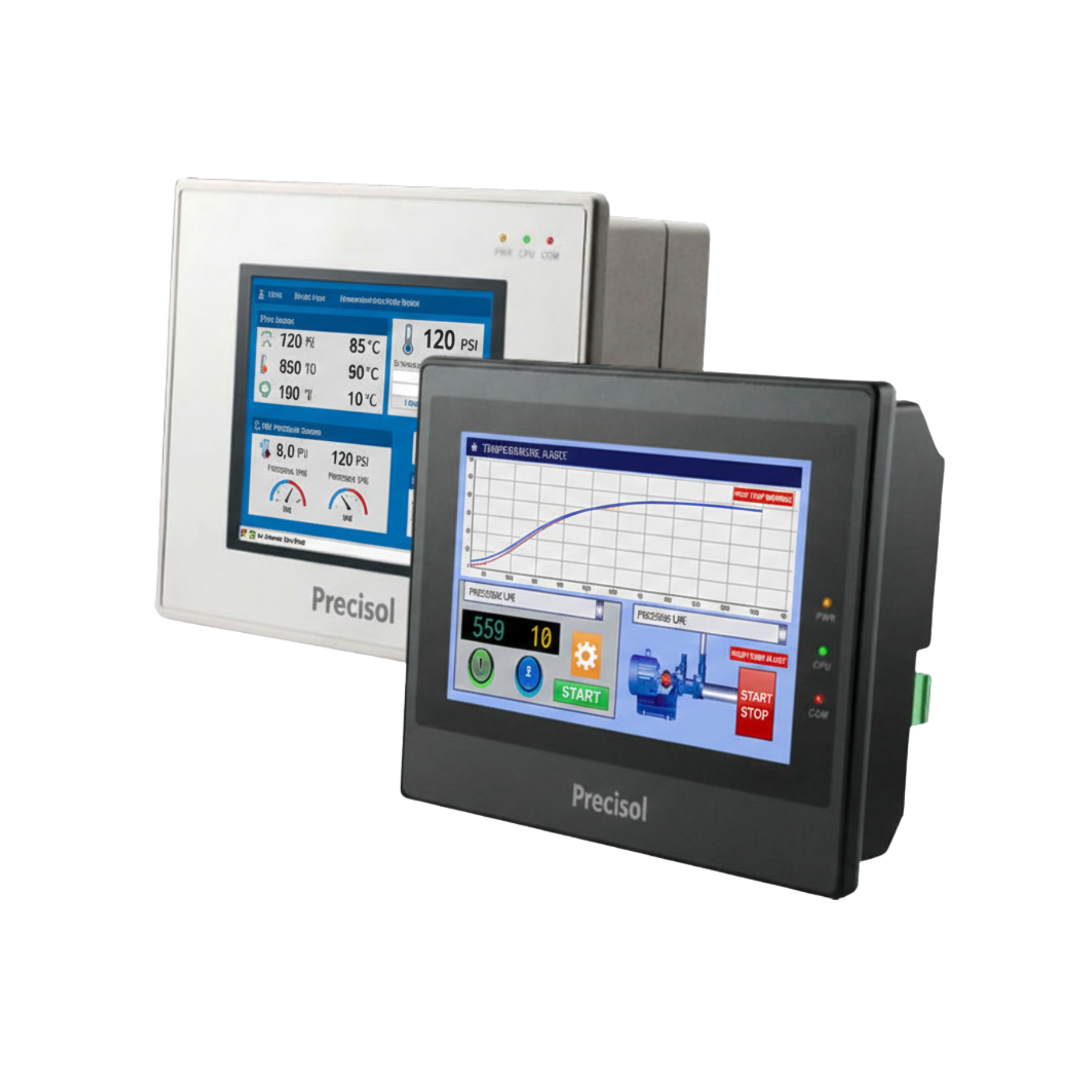

Human Machine Interface

7-Inch Industrial Human Machine Interface


Our 7-inch HMI panel is designed to deliver clear visualization, reliable communication, and smooth control for industrial automation applications. With a high-resolution IPS TFT display and multiple communication interfaces, this HMI provides operators with a responsive and user-friendly touchscreen experience.

Powered by 24 VDC, the HMI features a 7-inch IPS TFT LCD (24-bit color) with a resolution of 1024 × 600 pixels, ensuring a sharp and detailed display of process data, graphics, and dashboards. The LED backlight with a long operational life ensures consistent visibility during continuous operation.

The 4-wire resistive touch panel allows accurate and reliable input, even when operated with gloves. With a wide viewing angle of 80° in all directions, operators can clearly view information from different positions on the shop floor.

Get a Quote

Highlights

Multiple Communication Interfaces

Designed to support a wide range of automation requirements, this HMI comes with Ethernet, multiple serial ports (RS-232/422/485), and dual CAN 2.0 interfaces. These connectivity options ensure smooth communication with PLCs and other industrial devices for real-time data exchange and control.

High-Resolution Display

The 7-inch IPS TFT touchscreen offers a 1024 × 600 high-resolution displays with wide viewing angles, ensuring clear visibility from different positions. The 4-wire resistive touch panel provides accurate and reliable operation, allowing operators to interact with the system smoothly and confidently.

Reliable Industrial Performance

Powered by 24 VDC and equipped with a long-life LED backlight and industrial-grade memory, the 7-inch HMI delivers stable and consistent performance. It is ideal for applications that require continuous monitoring, control, and dependable operation throughout the production cycle.

Key Features

  • 7-inch IPS TFT LCD display with 24-bit color depth
  • High resolution (1024 × 600) for clear data visualization
  • LED backlight with long life (up to 20,000 hours)
First Image
  • 4-wire resistive touchscreen for precise operation
  • Wide viewing angle (80° L/R/U/D) for better readability
  • Brightness of 200 cd/m² for clear indoor visibility​
Last Image

Operating Voltage: 24 VDC

Display Type: 7-inch IPS TFT LCD (24 bits)

Resolution (Pixels): 1024x600

Back light: LED Back light (20000 hrs)

Display area: 154.21(W)*85.92(H)

Brightness: 200cd/m2

Touch Panel: 4 wire resistors

Viewing Angle: Wide viewing angle, 80/80/80/80(L/R/U/D)

Ethernet interface: 1 port (10/100 Mbps Ethernet)

Serial Communication port: COM 1&2 - RS-232/RS422/RS485, COM 3&4 - RS-232/RS422/RS485

CAN Communication: 2 Ports (CAN 2.0)

USB Host: 1 Port (USB 2.0)

USB Device: 1 Port (USB 2.0)

SD: Industrial SD/Micro SD

Flash Memory: 4Gbit

EEPROM: 64 Kbits

Applications

CNC Machine Monitoring & Control

CNC machines play a critical role in precision manufacturing where continuous monitoring of machine status and process parameters is essential for productivity and quality. Real-time visibility of spindle speed, feed rate, axis position, tool status, cycle time, and alarm conditions helps operators maintain optimal performance.Our HMI serves as an intelligent interface for CNC machine monitoring by integrating directly with the machine controller through supported industrial communication protocols. It provides a clear graphical display of operational data, machine status, production counts, and fault alerts on a centralized dashboard.With customizable screens and intuitive configuration, users can easily map key parameters, visualize live process data, and receive instant alarm notifications. This enables faster troubleshooting, reduced downtime, improved production efficiency, and better control over machining operations.

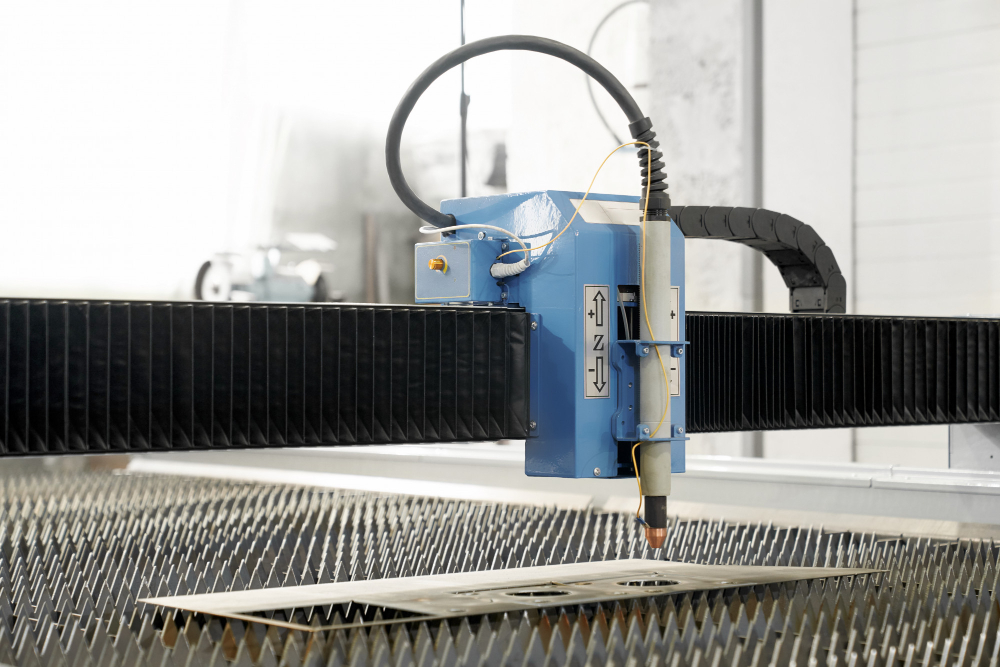

CNC Machine Monitoring

FAQs

A 7-inch industrial HMI is used to monitor, control, and visualize machine and process data. It provides operators with a touchscreen interface to manage automation systems efficiently.
