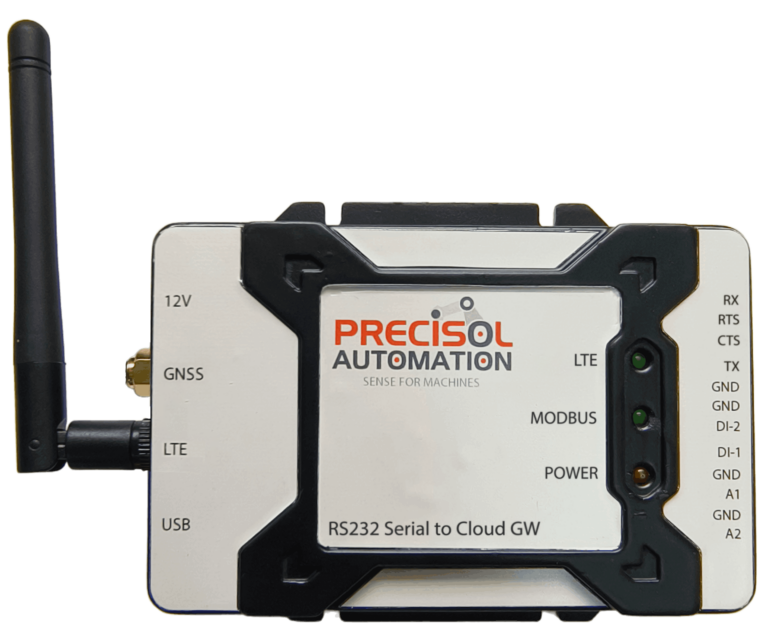

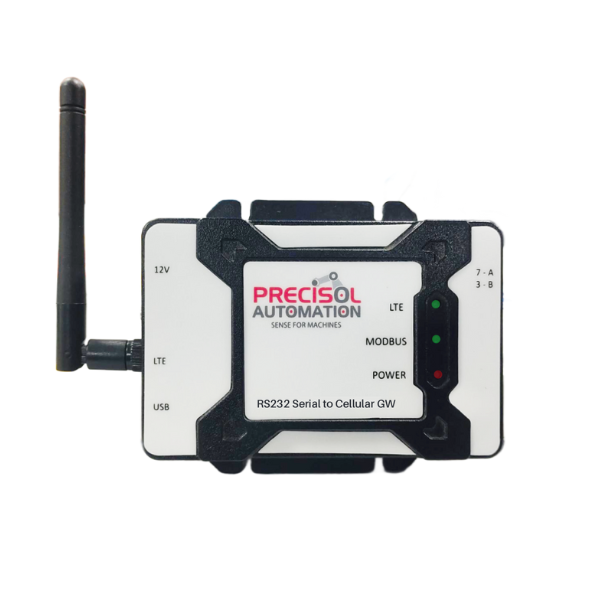

RS232 Serial to Cellular Gateway
Effortlessly connect your serial RS232 based industrial devices and remotely monitor from cloud dashboard with our 4G/2G enabled cellular gateway.
This industrial-grade wireless gateway can connect to any RS232 enabled device that requires seamless and periodic supervision from remote central server with fewer configurations. It uses public cellular network (2G/3G/LTE) for long-range data transmission enabling remote monitoring from a central server.
It is capable of supporting any type of serial protocols such as Modbus RTU/ASCII, custom request/response and produce/consume. This device can also operate as an MQTT/HTTPS gateway that ensures secure data communication between your device and cloud server.
Category: CAN/LIN Adapters
Highlights
PreciCloud - Cloud Dashboard
A customized cloud dashboard for viewing the acquired data from anywhere at any time. Support for remote device configuration, OTA firmware upgrade and email/SMS notification.
PreciCon - Quick Configuration
Our customized configurator tool, "PreciCon," available for configuring the device and supports upgrading firmware of our cellular gateway via USB or OTA. It is compatible for both Windows and Linux platforms.
Effortless Setup
Our devices are designed for effortless setup, ensuring quick and hassle-free installation. With intuitive interfaces and user-friendly guides, setting up the device is made easy without the need for specialized technical expertise.
Secure internal storage:
Acquired CAN data are available in inbuilt micro-SD card storage which stores the data more securely with encryption. The stored data can be decrypted and viewed using the PreciCon tool.
Quick configuration:
Connect the CAN-FD to USB adapter to your computer to configure the device to work with your vehicle using the free configuration tool PreciCon.
Simple Mounting and Ready to go:
Durable, robust ABS plastic enclosure can withstand the toughest conditions. Rigidly screw your adapter with available flange arrangement and get ready to log /view live data.
Key Features
- x1 RS232 serial interface
- Hardware flow control
- IP40 Rated enclosure
- USB 2.0
- Real time clock
- Protocol support - Modbus RTU/ASCII
- Optional internal storage
- LTE connectivity
- x2 digital inputs
- x2 analog inputs
- Optional GNSS
- M2M Simcard
Technical Specifications
Deliverables
Downloads
Technical Specifications
General
Power Supply: 5V to 24V DC
Power consumption: 2A Max @12V
PC interface: USB Mini B connector. USB device communication for configuration using PreciCon tool
Indication: Status LEDs for Power, Serial communication, cloud network communication
RS232 Serial Interface
Connection: External interface via pluggable terminal connector
Data bits: 5,6,7,8 bits
Baud Rate: 110, 300, 600, 1200, 2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 230400, 460800, 921600 bps
Stop bits: 1, 2 bits
Parity: None, Odd, Even, mark, space
Flow Control: None, RTS/CTS
Environmental
Dimension: 105mm X 68mm X 31.5mm (W/O flanges)
Weight: 138 gm
Mechanicals: ABS plastic (IP40)
Operating Temperature: -40 to +85 Degree Celsius
Data Storage
Storage Type: Non-Removable microSD card
Capacity: 8 to 32GByte
Analog Inputs
Number of channels: 2
Range: 4mA to 20mA current input
Resolution: 16-bit
Digital Inputs
Number of channels: 2
Input Switching Threshold: High – Greater than 3V or 1.5V (optional, to be mentioned during ordering), Low – Less than 3V or 1.5V (optional, to be mentioned during ordering)
Voltage input limit: 30V Max
Cellular Connectivity
LTE Category: LTE CAT 1, Support for global coverage including Europe, US, Asia-Pacific, etc (optional, to be mentioned during ordering)
Bands: LTE-FDD: B1/3/5/8, LTE-TDD: B34/38/39/40/41, GSM: B3/8
Antenna: SMA connector for external finger type or expandable antenna
SIM interface: Inbuilt non-removable micro SIM card
Cloud Data Transfer
Log data in industry standard format.
Cyclic Logging support – Oldest file will be deleted when storage is full
100% power safe data logging – no file corruption when disconnected.
Inbuilt RTC with year, month, date, weekday, hours, minutes and seconds data
RTC can be configured to match local time zone.
RTC can be auto-synced via LTE network.
Each device has a globally unique ID ensuring unique log file naming.
Logged files can be encrypted for security/GDPR/CCPA (incl. integrity check)
Stable and secure transfer like HTTP/HTTPS, etc. Data and OTA updates can be sent via secure transfer like TLS 1.2
Encrypted server credentials in device storage
Configuration or firmware Over-The-Air support with digital signature
Periodic heartbeat to cloud for connection supervision
Option for enabling or disabling upload of logged files to cloud
Deliverables
- One Unit with IP40 rated ABS plastic enclosure
- PreciCon – Windows / Linux OS based application for configuration
- PreciCloud – Cloud application with individual login per user
- One LTE Antenna
- One pluggable terminal connector for RS232 interface
- User Manual
Downloads
Applications

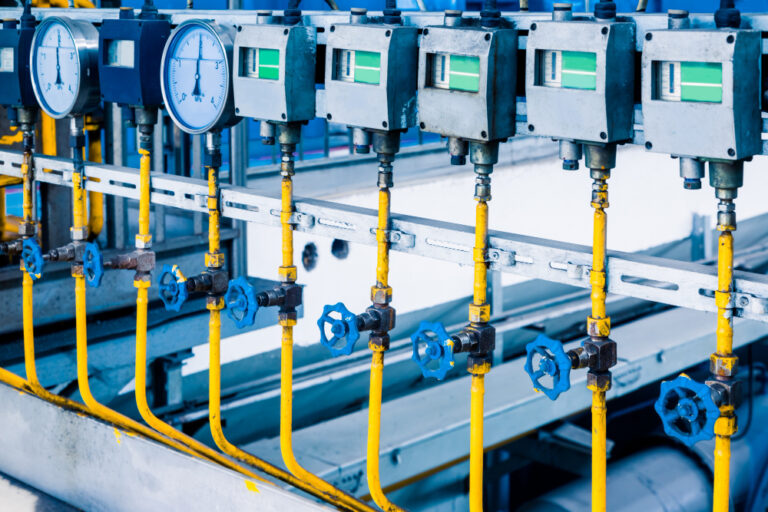

HTTPS Gateway for Smart metering

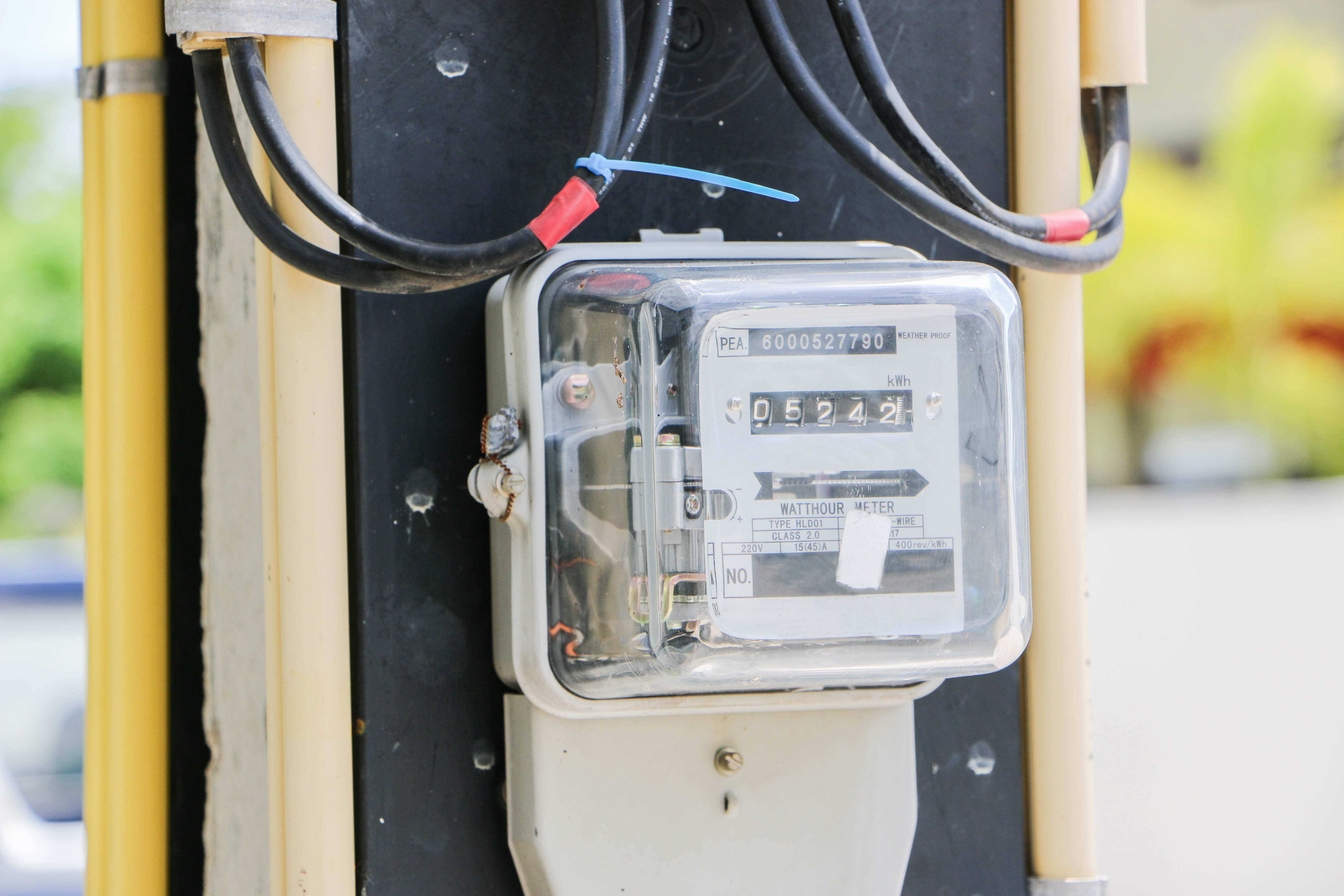

Smart meters connected through our HTTPS gateway can be monitored and controlled remotely for reading the energy consumptions, water or gas usages. Plug your RS232 enabled devices via standard DB9 connector and effortlessly configure the HTTPS gateway via PreciCon configurator tool provided with the device.
Cloud URL and certificates can be updated using the configurator tool ensuring secure cloud communication. The PreciCon tool also facilitates configuring the serial communication protocols such as Modbus RTU/ASCII, custom request response or produce/consume, and the cloud data upload based on time interval or edge intelligence.
Remote Temperature monitoring
Our ready-to-deploy, RS232 based serial IIoT gateways can quickly connect with industry-leading temperature controllers with very few configurations and monitor the process value remotely from our cloud dashboard. This HTTPS Gateway can ensure secure communication and users can also write the set value (SV) into the temperature controller making it more suitable for remote temperature monitoring and control as well.
With the inbuilt edge intelligence feature, users can receive alerts and notifications upon reaching the configured threshold values.
